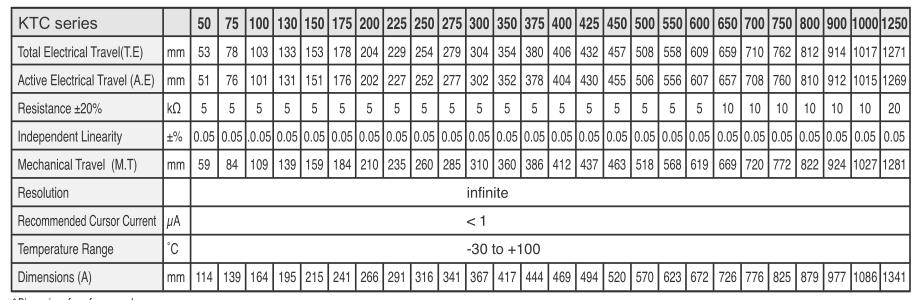

KTC standard linear transducers are designedfor direct absolute measurement and are available in different stroke lengths up to 1250mm.The sensors give exceptional resolution with repeatability of±0.01mm and outstanding linearity of±0.05% maximum.The sensors can be directly mounted into the mechanical system eliminating the use of racks and pinions or similar devices.The KTC series has a solid stainless steel shaft with long bearings in the housing for a robust and smooth operation with long life. The slider has a ball coupling which reduces the effects of misalignment with the actuating part.An improved technique for making connection to resistance track (Double Trimming Technique)
ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions. The fixing feet are adjustable to the desired positions.
