Unique Features
. Anodized aluminium housing
. Stroke lengths from 50 to 900mm
. Twin-bearing actuating rod
. Excellent linearity to +0.05%
. Repeatbility better than 0.01mm
Smooth Low Noise Output from Conductive Plastic Tack
. Very Long Life
>100 X 10⁶ Cycles
>25x 10⁶ m
. Stroke: 50-900mm
. Outstanding Linearity: ±0.05%
. High Resolution: Infinite
. Excellent Repeatability:±0.01mm
. Max operating speed: 5m/s max.

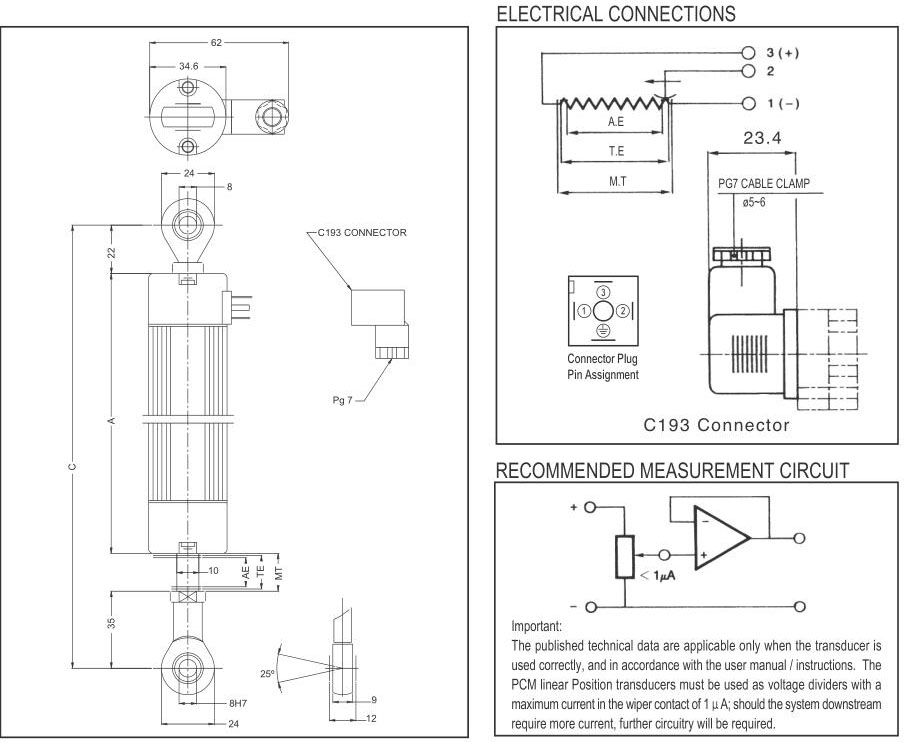

. C193 4-PIN Connector
. Fuse Protected optional
. Operating temperature : -30 ~100°C

. Storage Temperature : -50 ~120°C

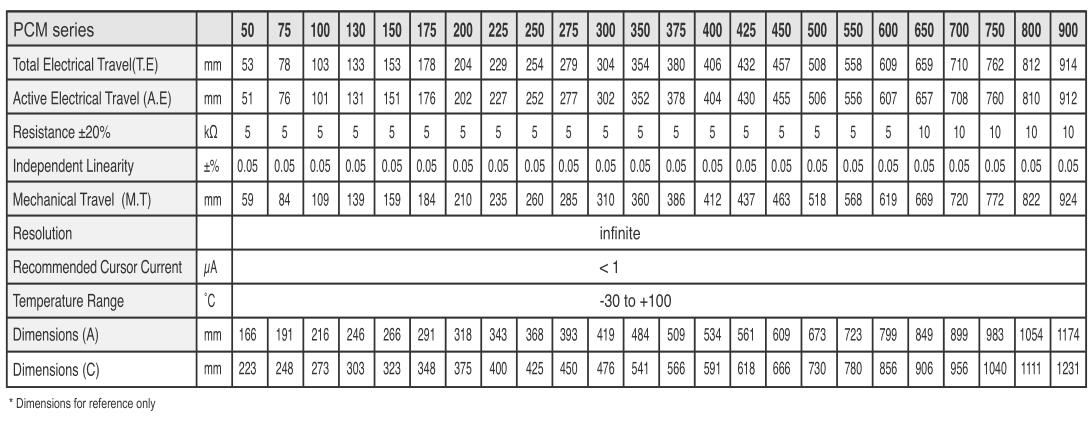

Technical Specifications
Sealing - PCM :IP65
Current
Resistance:≤10mA
Wiper:≤1mA
Operating Force:≤10N
Power Consumtion:3W-10W
Output Smoothness:<±0.1% against input vltage
Input Voltage:60 V Max
Insulation Voltage:500V-1 min Residue<5 μA
Vibration:IEC 68-2-6:1982 10g
Shock:IEC 68-2-29:1968 40g
