Unique Features
●Mini design for limited space
●Anodised Aluminium Housing
●Double slide and bearing
●Standard Coupling joints
Very Long Life
>100 x 10⁶ Cycles
>25x 10⁶ m
●Stroke length :10-450mm
●Outstanding Linearity up to: ±0.05% .
●High Resolution: Infinite
●Excellent Repeatability:±0.01mm
● Max operating speed: 5m/s max.

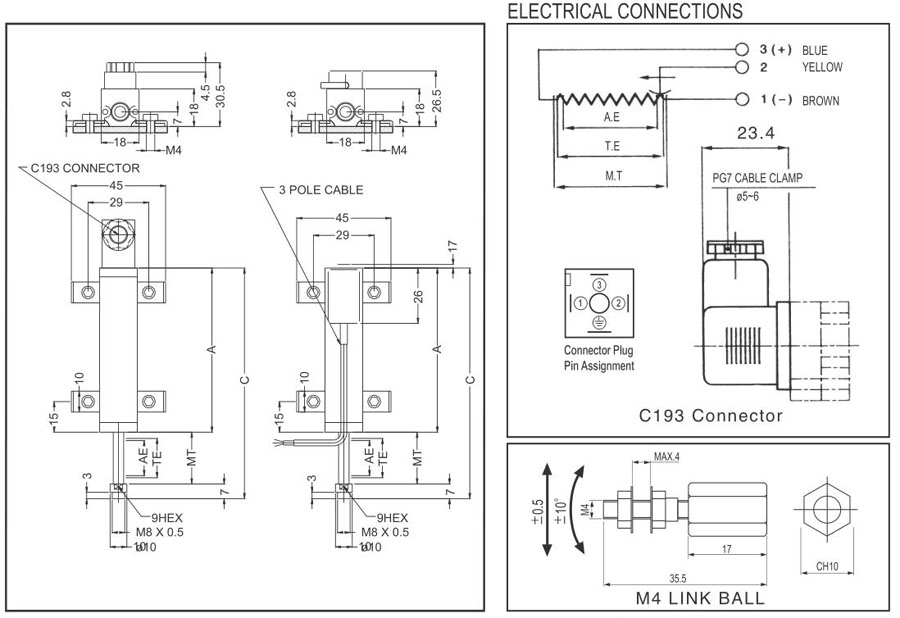

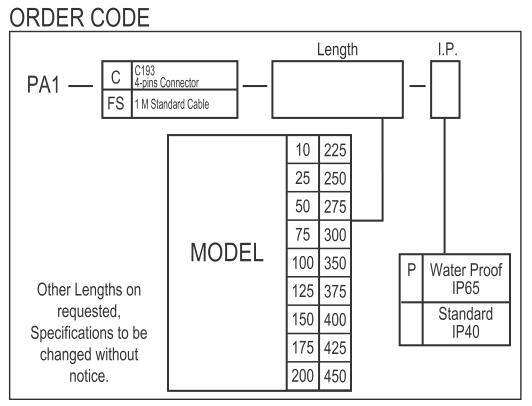

●PA1C- 4-pin C193 connector
●PA1FS - standard 1m cable
●Sealing IP 40 standard (IP 65 optional)
●Fuse Protected optional
●Operating temperature : -30 ~100°C

●Storage Temperature: -50 ~120°C

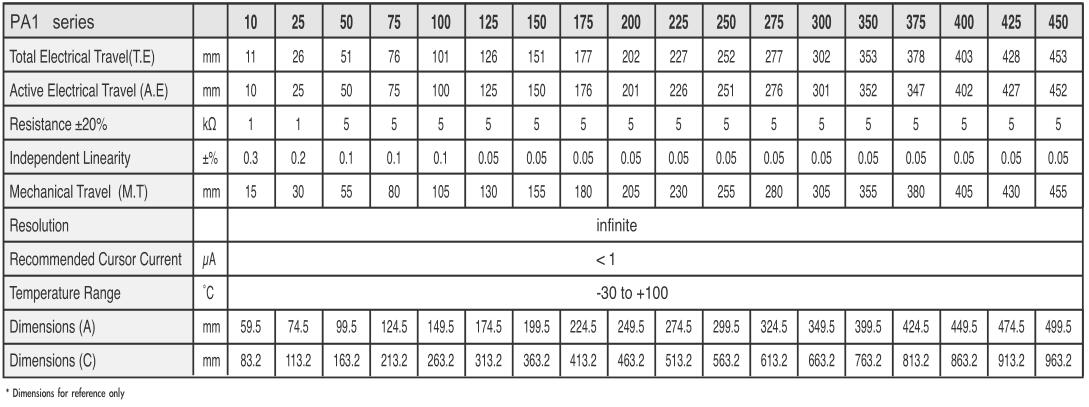

Technical Specifications
Sealing - PA1C/PA1F:IP40
Sealing -optional:IP65
Current
Resistance:≦10mA
Wiper:≦1mA
Operating Force:
≦1.2N (IP40)
≦5N (IP65)
Power Consumption:3W-10W
Output Smoothness:<±0.1% against input voltage
Input Voltage:60 V Max
Insulation Voltage:500V-1 min Residue<5 μA
Vibration:IEC 68-2-6:1982 10g
Shock:IEC 68-2-29:1968 40g
