Unique Features
. Mini design for limited space
. Anodised Aluminium Housing
. Double slide and bearing
. Standard Coupling Joints
.Very Long Life
>100 X 10⁶ Cycles
>25x 10⁶m
. Stroke: 10-450mm
. Outstanding Linearity up to：±0.05%
High Resolution: Infinite
Excellent Repeatability:±0.01mm
Max operating speed: 5m/s max.

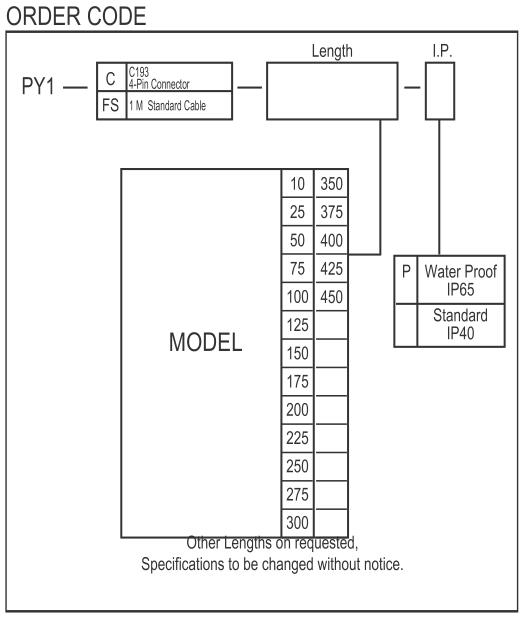

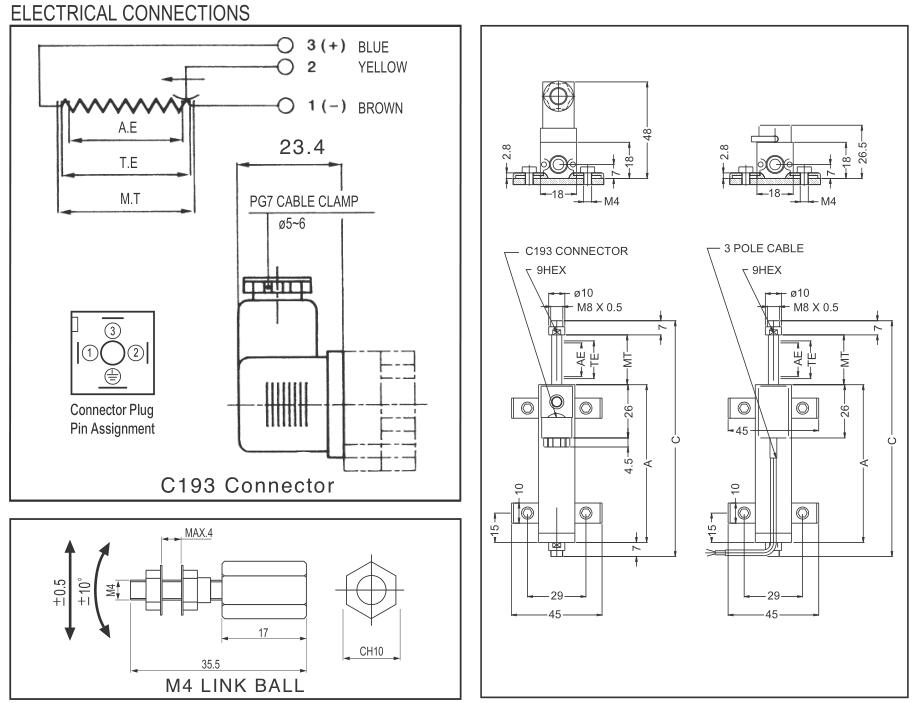

. PY1C - 4-pin C193 connector
PY1FS - standard 1m cable
. Sealing IP 40 standard (IP 65 optional)
Fuse Protected optional
. "Pull" and "Push" Rod type
Operating temperature： : -30 ~100°C
. Storage Temperature: -50 ~120°C

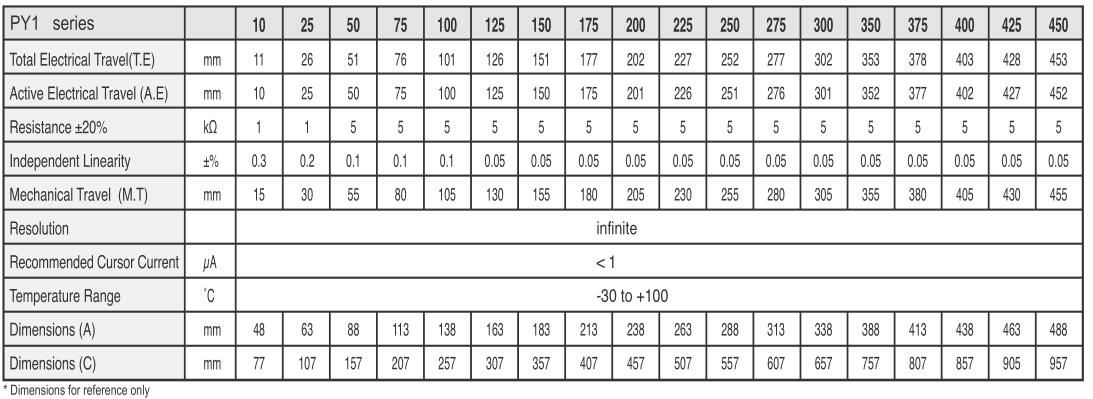

Technical Specifications
Sealing - PY1C/PY1F：IP40
Sealing - optional：IP65
Current
Resistance：≦10mA
Wiper：≦1mA
Operating Force：≦1.2N (IP40)
≦5N (IP65)
Power Consumption：3W-10W
Output Smoothness：<±0.1% against input vltage
Input Voltage：60 V Max
Insulation Vlage：500V-1 min Residue <5 μA
Vibration：IEC 68-2-6:1982 10g
Shock：IEC 68-2-29:1968 40g
