Unique Features
. Harden steel ball head for measurement
. of cam-following application
. Mini design for limited space
. Anodised Aluminium Housing
. Double slide and bearing
. Very Long Life
>100 X 10⁶ Cycles
>25x 10⁶ m
. Stroke : 10-50mm
. Outstanding Linearity up to :±0.1%
. High Resolution : Infinite
. Excellent Repeatability :±0.01mm
. Max operating speed : 5m/s max.

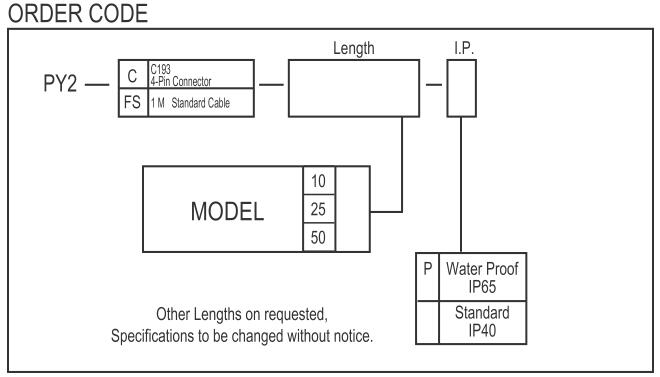

. PY2C - 4-pin C193 connector
. PY2FS - standard 1m cable
. Sealing IP 40 standard (IP 65 optional)
. Fuse Protected optional
. Anti - rotating shaft device optional

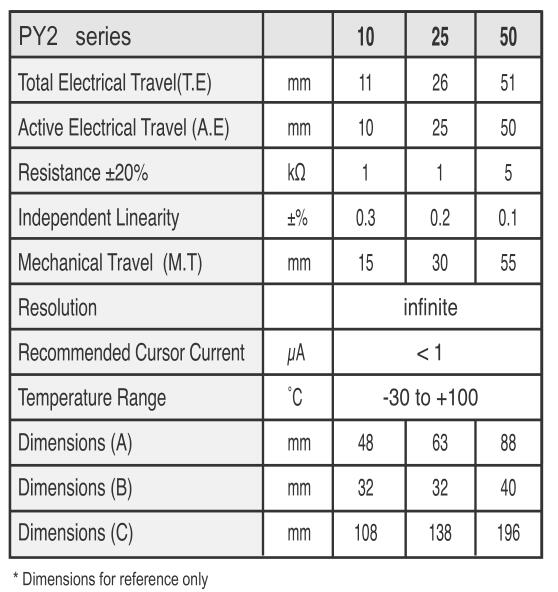

Technical Specifications
Sealing - PY2C/PY2FS: IP40
Sealing - optional: IP65
Current
Resistance: ≦10mA
Wiper: ≦1mA
Operating Force
≦1.2N (IP40)
≦5N (IP65)
Power Consumption:3W-10W
Output Smoothness:<±0.1% against input voltage
Input Voltage: 60 V Max
Insulation Voltage: 500V-1 min Residue<5 μA .
Vibration: IEC 68-2-6:1982 10g
Shock: IEC 68-2-29:1968 40g
