Unique Features
. Harden steel bearing roller head for measurement
of moving pile stock thickness
. Mini design for limited space
. Anodised Aluminium Housing
. Double slide and bearing
. Very Long Life
>100 X 10⁶ Cycles
>25x 10⁶ m
. Stroke: 10-450mm
. Outstanding Linearity up to:±0.1%
. High Resolution: Infinite
. Excellent Repeatability:±0.01mm
. Max operating speed: 5m/s max.

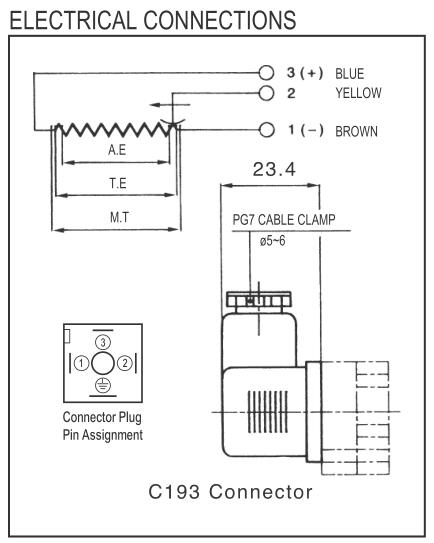

. PY3C -4 pin C193 connector
. PY3FS - standard 1m cable
. Sealing IP 40 standard (IP 65 optional)
. Fuse Protected Optional

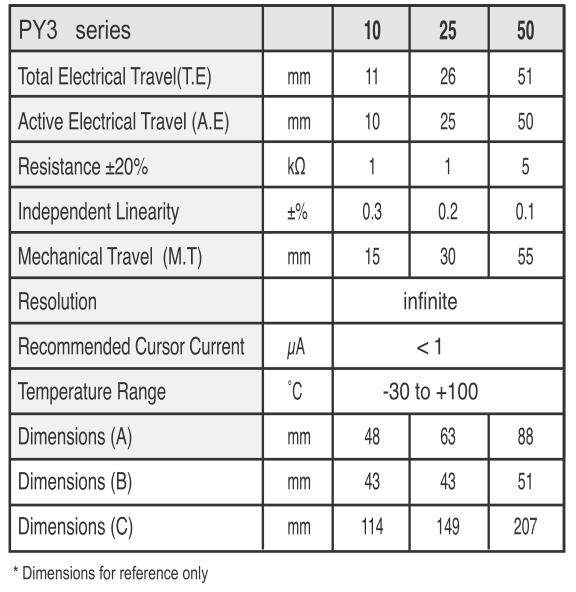

Technical Specifications
Sealing - PY3C/PY3FS：IP40
Sealing - optional：IP65
Current
Resistance：≦10mA
Wiper：≦1mA
Operating Force
≦1.2N (IP40)
≦5N (IP65)
Power Consumption：3W-10W
Output Smoothness：<±0.1% against input vltage
Input Voltage：60 V Max
Insulation Voltage：500V-1 min Residue<5 μA
Vibration：IEC 68-2-6:1982 10g
Shock：IEC 68-2-29:1968 40g
