Unique Features
●Mini design for limited space
●Anodised Aluminium Housing
●Three mounting methods
●Very Long Life
>100 X 10⁶ Cycles
>25x 106⁶ m
●Stroke : 10-150mm
●Outstanding Linearity up to:±0.05%
●High Resolution: Infinite
● Excellent Repeatability：±0.01mm
● Max operating speed：5m/s max.

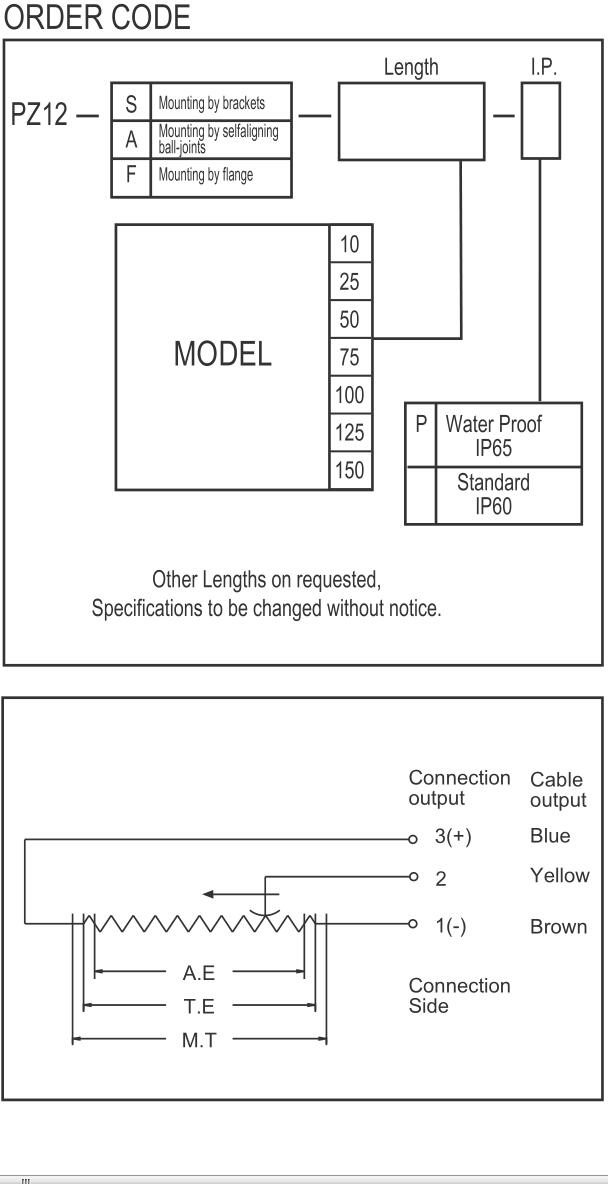

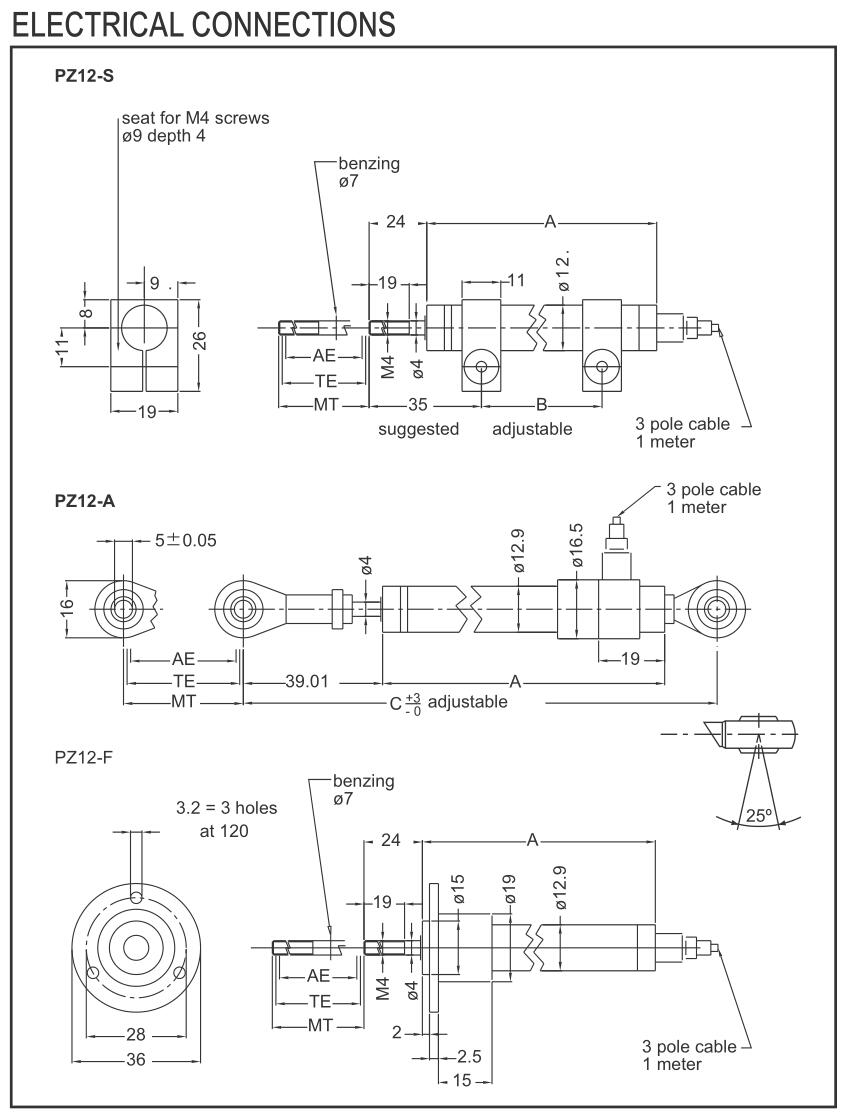

●PZ12S - two adjustable brackets
●PZ12A - two self-aligning ball joints
●PZ12F - flange mounted
●Sealing IP 60 standard (IP 65 optional)
●Fuse Protected optional
●Operating temperature: -30 ~100°C
●Storage Temperature: -50 ~120°C

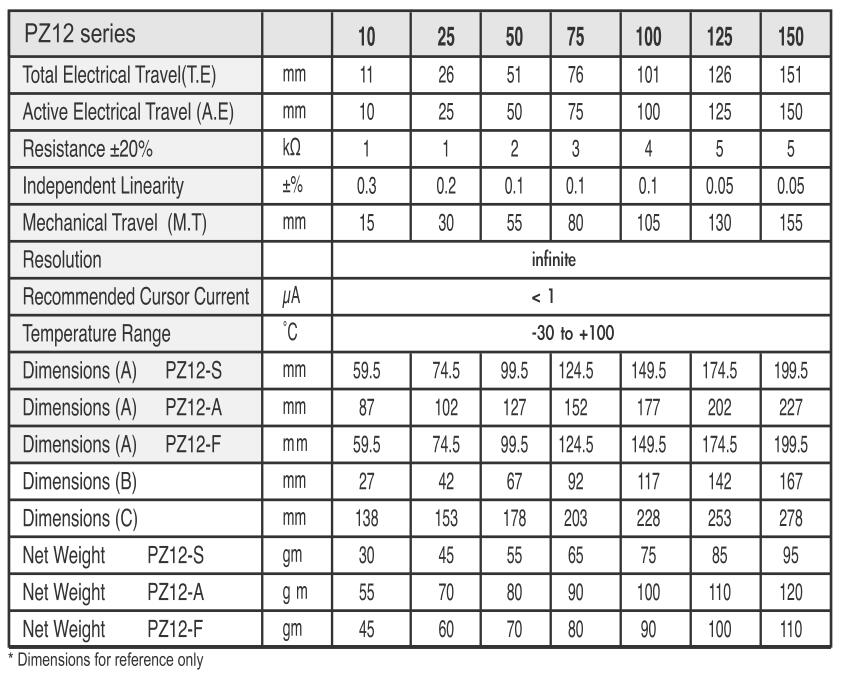

Technical Specifications
Sealing- PZ12S/PZ12A/PZ12F：IP60
Sealing - optional：IP65
Current
Resistance ：≦10mA
Wiper：≦1mA
Operating Force
≦0.5N (IP60)
≦5N (IP65)
Power Consumption：3W-10W
Output Smoothness：<±0.1% against input vltage
Input Voltage：60 V Max
Insulation Voltage：500V-1 min Residue<5 μA
Vibration：IEC 68-2-6:1982 10g
Shock：IEC 68-2-29:1968 40g
