Unique Features
. Mini design for limited space
. Anodised Aluminium Housing
. Very Long Life
>100 X 10⁶ Cycles
>25x 106⁶ m
. Stroke : 10-250mm
. Outstanding Linearity : ±0.05%
. High Resolution : Infinite
. Excellent Repeatability up to :±0.01mm
. Max operating speed : 5m/s max.

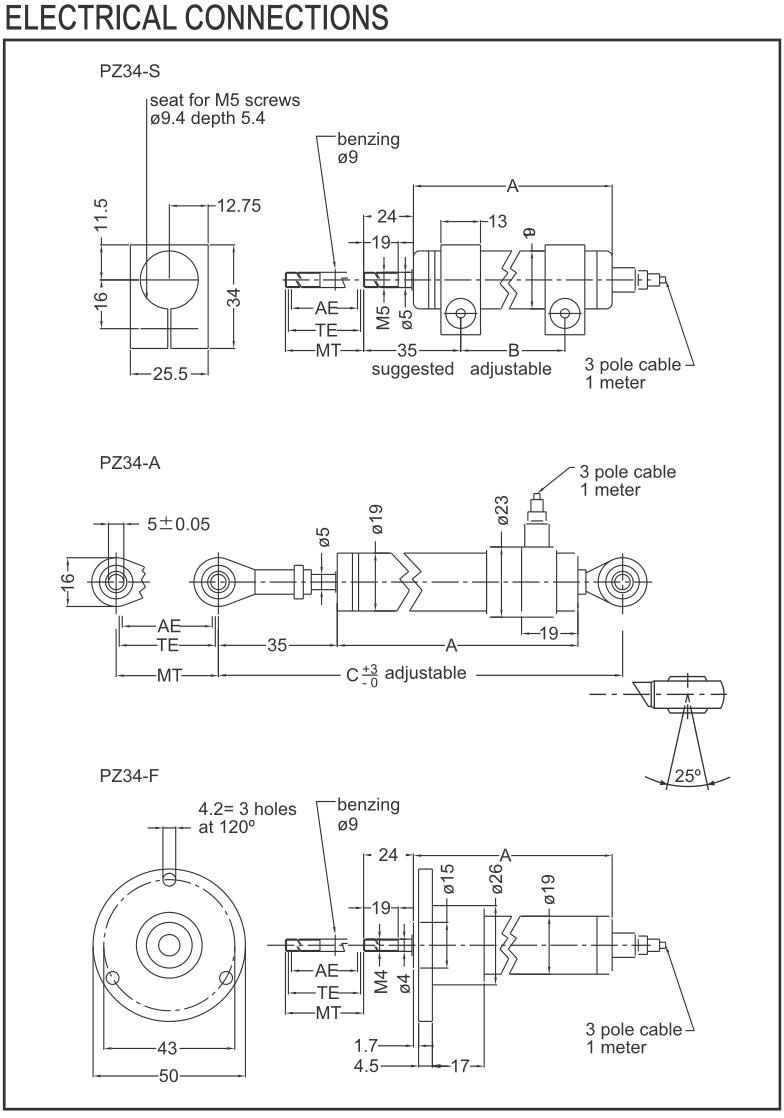

. Three mounting methods
. PZ34S - two adjustable brackets
. PZ34A - two self-aligning ball joints
. PZ34F - flange mounted
. Sealing IP 60 standard (IP 65 optional)
. Fuse Protected optional .
. Operating temperature : -30 ~100°C
. Storage Temperature : -50 ~120°C

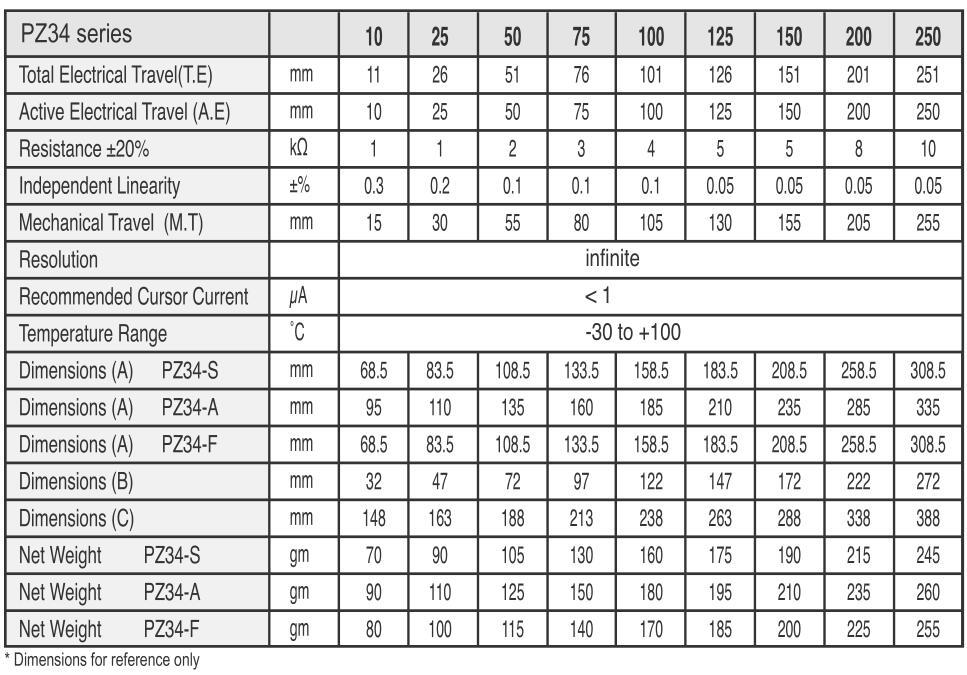

Technical Specifications
Sealing - PZ34S/PZ34A/PZ34F：IP60
Sealing - optional：IP65
Current
Resistance：≦10mA .
Wiper：≦1mA
Operating Force
≦0.5N (IP60)
≦5N (IP65)
Power Consumption：3W-10W
Output Smoothness：<±0.1% against input voltage
Input Voltage：60 V Max
Insulation Voltage：500V-1 min Residue <5 μA
Vibration：IEC 68-2-6:1982 10g
Shock：IEC 68-2-29:1968 40g
